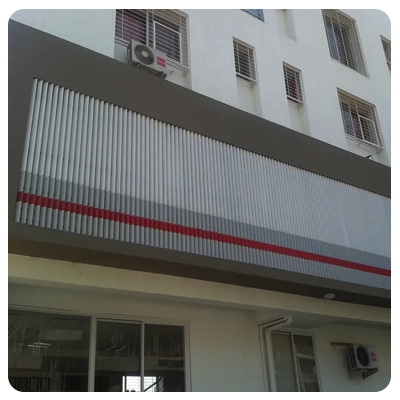

84 R / 90 R

Technical Specification

Manufacturers Specification for Supersil 84R Panel Exterior Cladding System.

Panel Details (Aluminium):

Supersil make 84 R, Round edge panels, 84mm wide x 15mm deep x length up to 5mtr. formed out of 0.71 mm thick (TCT) Aluminium alloy (AA) 8011-H3, fixed on Louvre Carriers. Panels shall be powder coated on both the surfaces with special exterior SUPERCOTE powder to enhance property of Fadeness Resistivity.

Panel Details (Galvanized Steel):

Supersil make 84 R, Round edge panels, 84mm wide x 15mm deep x length up to 5mtr. formed out of 0.55 mm thick (TCT) Galvanized Steel as per IS-513 fixed on Louver Carriers. Panels shall be powder coated on both the surfaces with special exterior SUPERCOTE powder to enhance property of Fadeness Resistivity.

Carrier Details:

Carrier, 28 mm wide at the bottom x 43 mm deep formed out of 0.6 mm thick galvanized steel sheet stove enameled black with protruding ears to hold the panels in a module of 100mm.

Installation Details:

GS clit shall be fixed on Vertical Columns with dash fasteners at distance not more than 1 mtr. Centre to centre on which Tubular Stud sections will be laid with corrosion proof screws and on this rigid structure carrier shall be fixed vertically at distance of 1 mtr. Centre to centre. Panel shall be clipped to black carriers.
