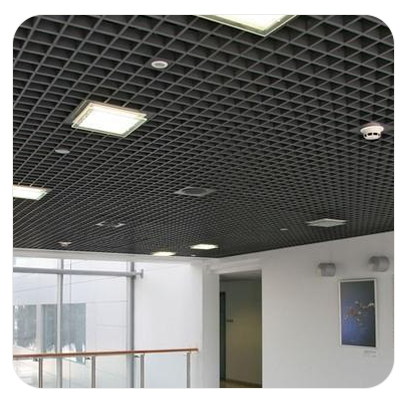

OPEN CELL CEILING

Manufacturers Specification for Open Cell Ceiling System.

Open Cell Ceiling C50 / C75 / C100 / C150 / C200

MAIN & CROSS RUNNER:

Supersil make U shaped profile, 10 mm wide x 50 mm deep with inwardly return edge of 2.5mm formed out of 0.50 mm thick (TCT) Aluminum Alloy AA 8011 fixed with a special groove to snapping Cross Profile to make module of desired square. Panel shall be powder coated on external surface only.

Installation Details:

The Main Runner shall be fixed at a distance of 1.2mtrs C-C and shall be suspended by means of G.I Suspension Rod 4mm diameter and a Galvanized Suspension Spring Clip at a distance of 1.2mtrs C-C. The Cross Runner shall be fixed to the Main Runner at a distance 0.6mtrs C-C., with a self locking device. The Upper Section and Lower section shall be fixed to the Main Runner and Cross Runner in a form of a Cell Structure of module 100mm*100mm with a self locking device.
